Design with Aubrick
Lay out Aubrick in any bond, set the joint, and download textures and hatches for your drawings. It runs in your browser, with nothing to install.
How it works
Choose a bond or paving pattern, such as stretcher, stack, or herringbone, and set how many rows and columns to show.

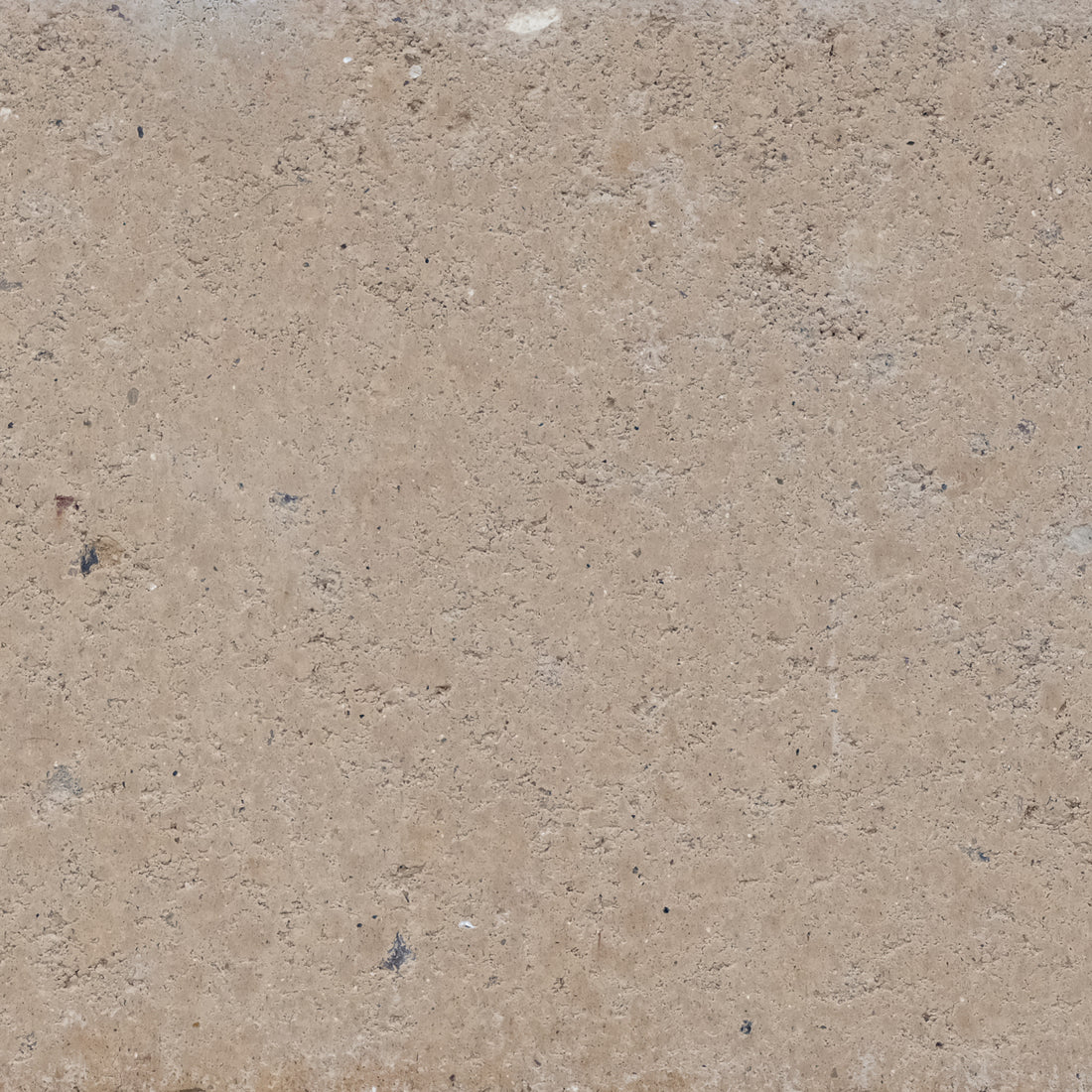

London Yellow and Welsh Grey, each in smooth and rustic, at the real 215 x 65 mm slip size. Mix finishes in one layout with Add another material.
Pick the mortar and its colour, and set the joint width.

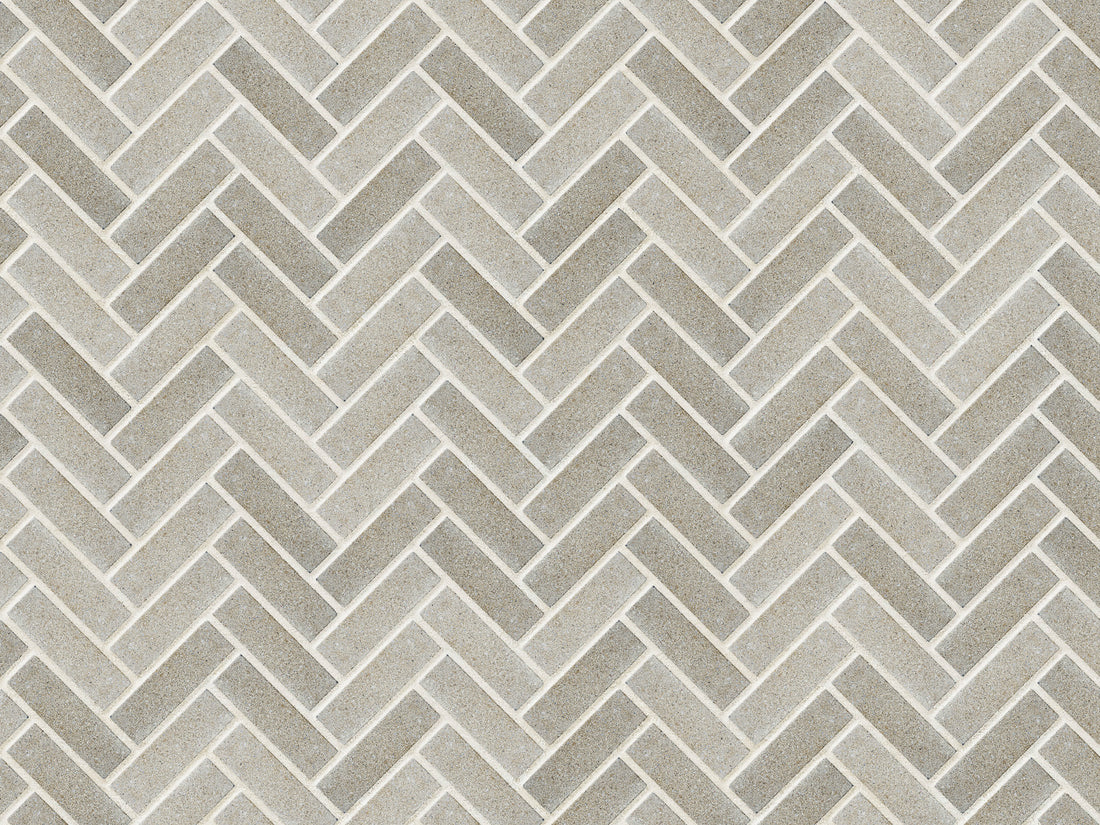

Seamless textures and bump maps for rendering, and hatch patterns for AutoCAD and Revit, ready to drop into your drawings.
Visualiser by Architextures. For the most room, open it full screen.
Plan your wall
FAQ
How many Aubrick slips do I need per m²?
About 59 at a 10 mm joint, before wastage. A narrower joint needs more: about 61 at 8 mm, and 64 at 6 mm. Full bricks have the same face, so a single-skin wall takes the same number per m².
What size are the slips and bricks?
Slips are 215 × 65 mm and 20 mm thick, in London Yellow and Welsh Grey, smooth or rustic. Full bricks are 215 × 102.5 × 65 mm.
Which joint width should I choose?
10 mm is standard for UK brickwork and is the planner's default. A narrower joint needs more slips per m², and a wider one fewer.
How much should I allow for wastage?
5% covers cuts and breakages on a straightforward wall. Patterns with a lot of cutting, such as herringbone, or walls with many openings, need more.
How is the carbon figure worked out?
Aubrick's lime binder takes in CO₂ from the air: up to 35 g per slip and up to 178 g per full brick over its lifetime. That is a ceiling, not a rate. Once the lime has taken in all it can, it holds it. The planner counts only the slips or bricks in the wall, not the wastage. It is absorption only, not a whole-life or net figure.
Where does the earth come from?
Aubrick is made from excavated soil, compressed with a lime binder rather than fired.
What about a double-skin wall?
The planner counts a single-skin (half-brick) wall. For a double-skin wall, double the full brick count.
How do I order?
Slips are sold per m², and full bricks by the pallet of 400. Get in touch for trade samples, project pricing, and lead times.
See it in your hand
All four finishes as full-size slips, £5 each, free for trade.
Datasheet and EPD
Technical data, certification, and the Environmental Product Declaration.
